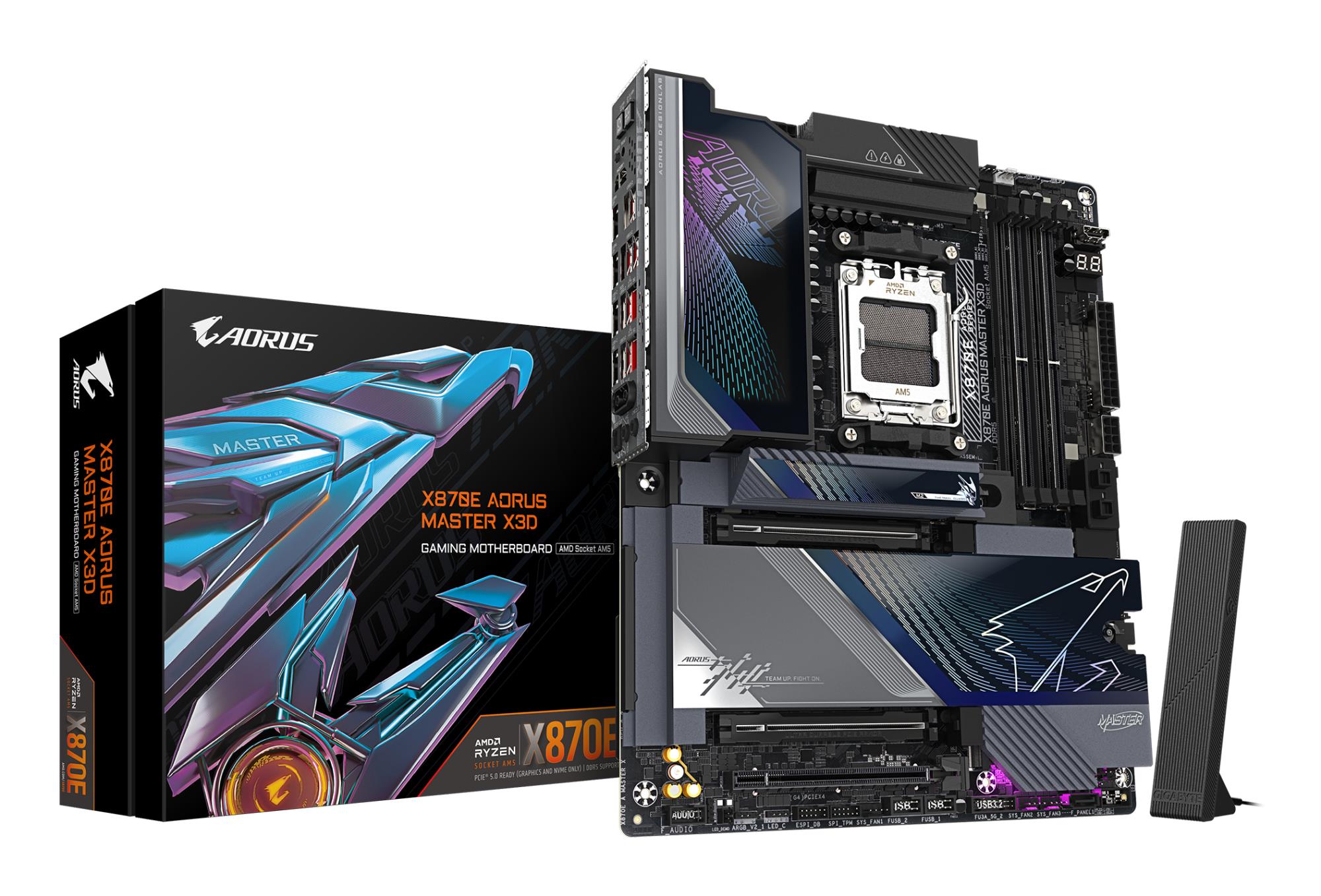

GIGABYTE Amd X870E Socket AM5 ATX X870EAMASTERX (X870E A MASTER X)

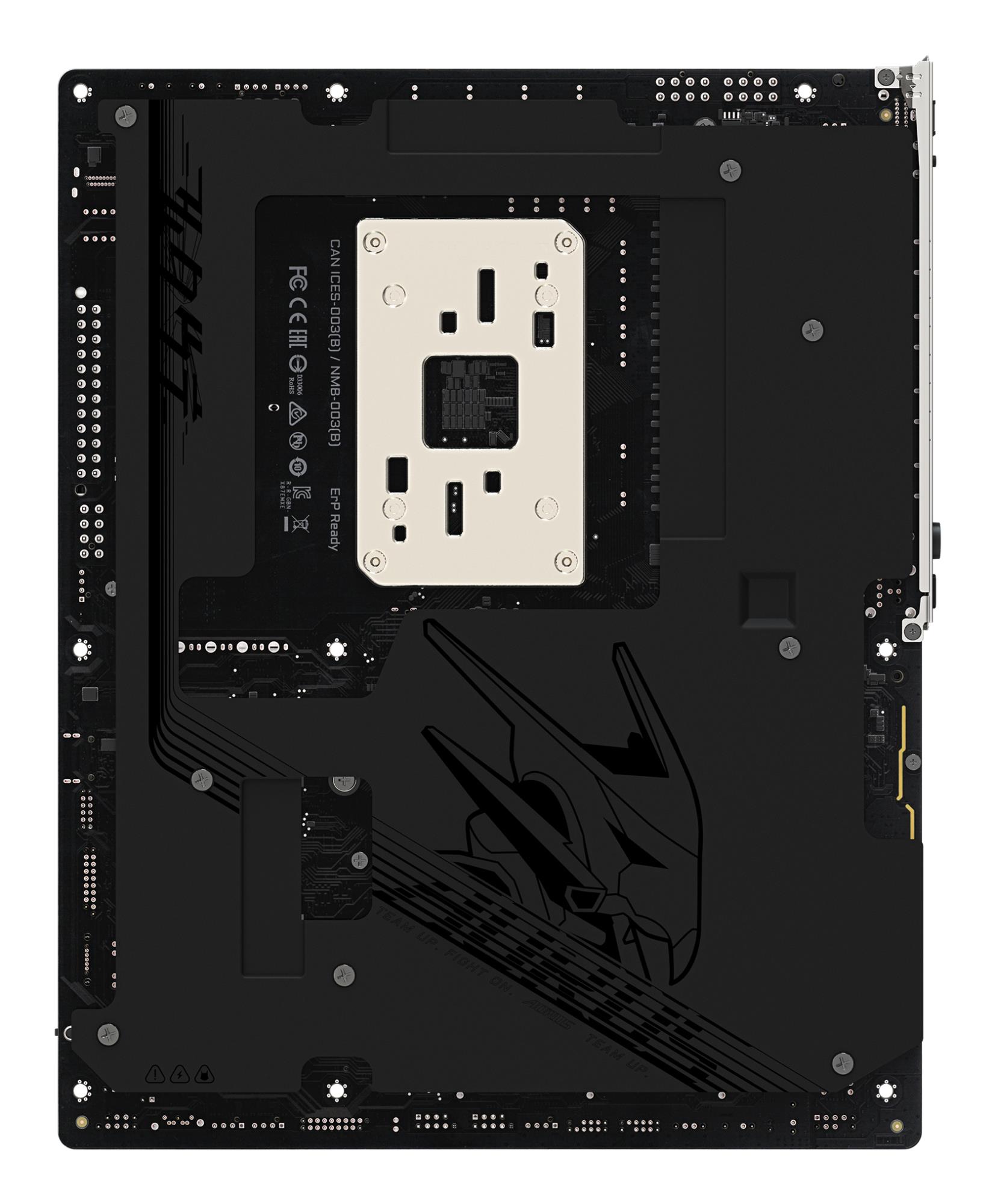

GIGABYTE Amd X870E Socket AM5 ATX X870EAMASTERX (X870E A MASTER X) - Image 2
GIGABYTE Amd X870E Socket AM5 ATX X870EAMASTERX (X870E A MASTER X) - Image 3

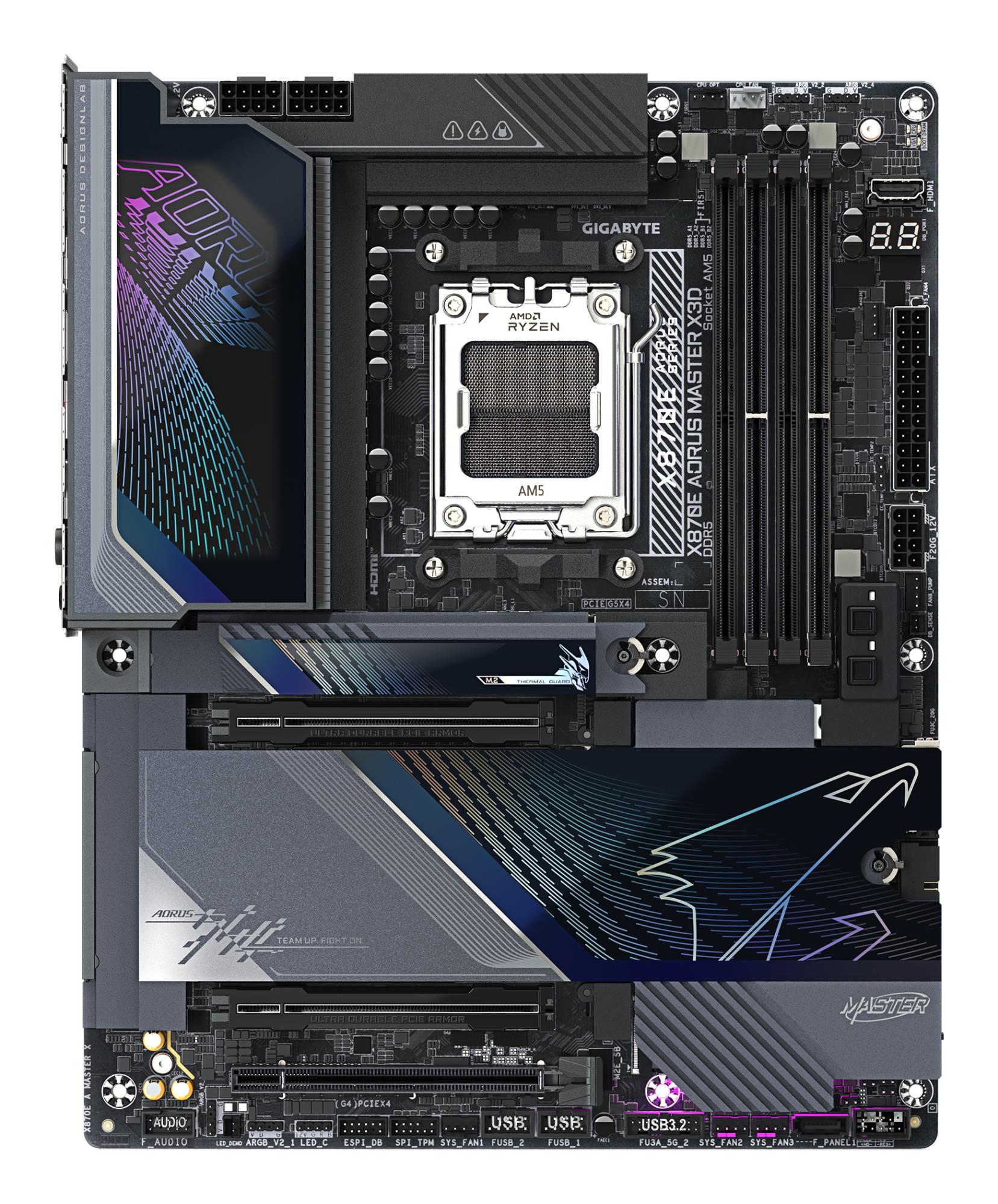

GIGABYTE Amd X870E Socket AM5 ATX X870EAMASTERX (X870E A MASTER X) - Image 4
GIGABYTE Amd X870E Socket AM5 ATX X870EAMASTERX (X870E A MASTER X) - Image 5

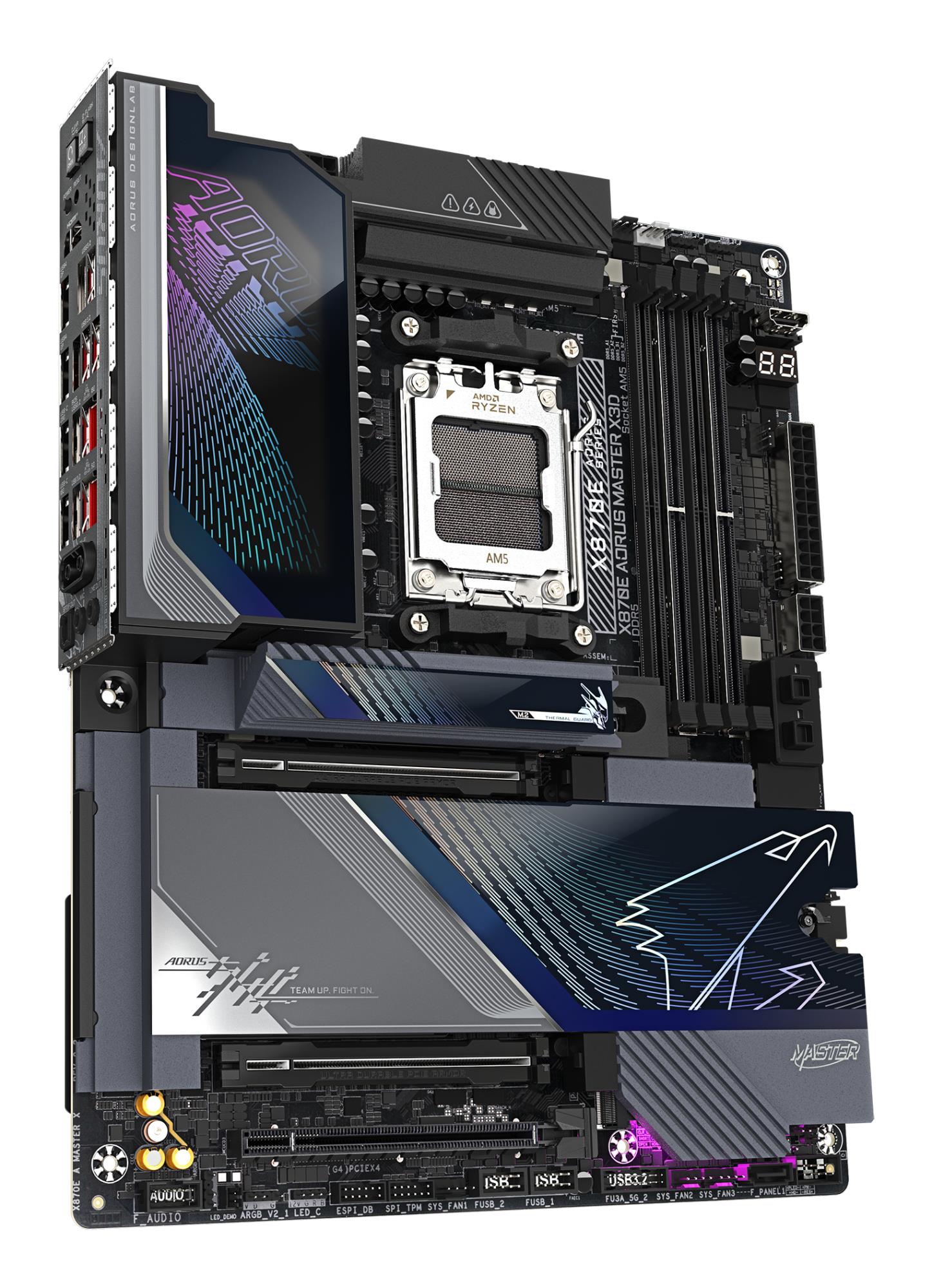

GIGABYTE Amd X870E Socket AM5 ATX X870EAMASTERX (X870E A MASTER X) - Image 6

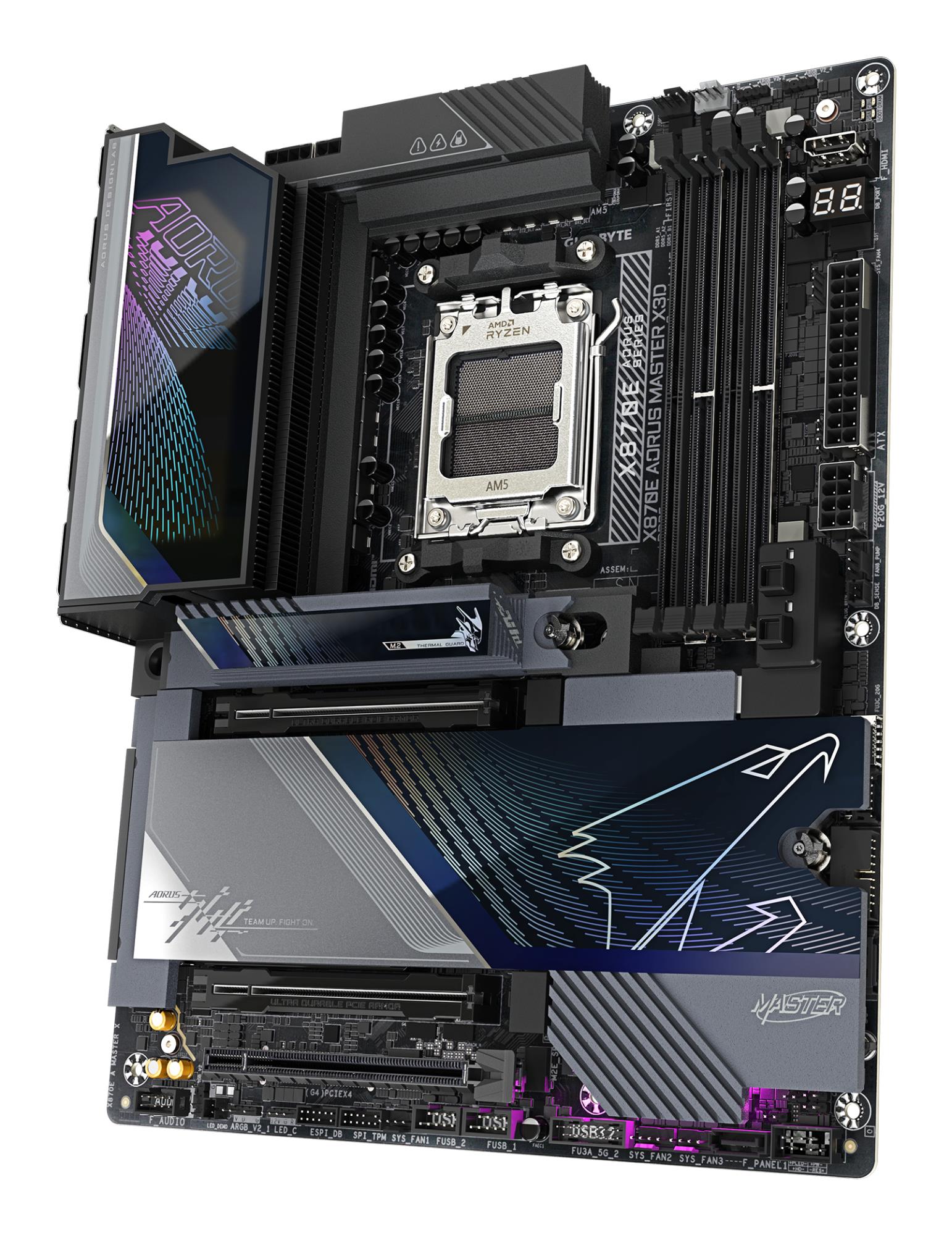

GIGABYTE Amd X870E Socket AM5 ATX X870EAMASTERX (X870E A MASTER X) - Image 7

GIGABYTE Amd X870E Socket AM5 ATX X870EAMASTERX (X870E A MASTER X)

517,50 €

5 in stock

SKU: 1455630 Category: EAN: 4719331878894 Brand:
Manufacturer code: X870E A MASTER X

GIGABYTE X870E AORUS MASTER X3D

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
  • Dual Channel DDR5: 4DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 18+2+2 phases VRM solution
  • PCIe EZ-Latch Plus Duo: One click for screwless & quick release on dual PCIe slots
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
  • Ultra-Fast Storage: 5M.2 slots, including PCIe 5.0 x4

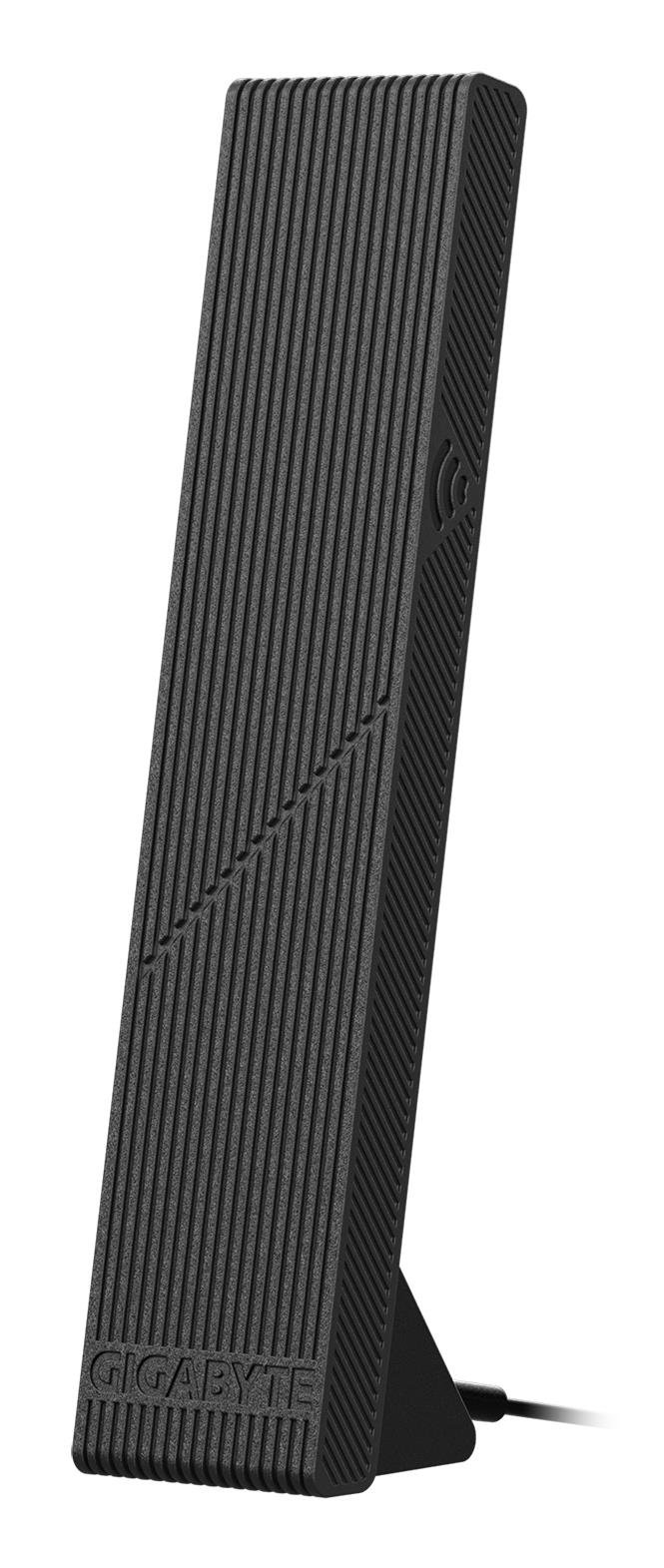

  • Fast Networking: 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W

Technical details

Warranty period3 year(s)

Other features

Weight3780 g

Packaging content

Antenna includedYes
Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version)
Screws includedYes

Weight & dimensions

Depth244 mm
Height35 mm
Width305 mm

Battery

Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1

Logistics data

Country of originTaiwan
Products per shipping (inner) case1 pc(s)

Packaging data

Package depth310 mm
Package height92 mm
Package weight4330 g
Package width340 mm

General

SummaryGIGABYTE X870E AORUS MASTER X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Vendor Homepagehttps://www.gigabyte.com/Motherboard/X870E-AORUS-MASTER-X3D
ModelGIGABYTE X870E AORUS MASTER X3D

BIOS

ACPI version5.0
BIOS memory size512 Mbit
BIOS typeUEFI AMI
Clear CMOS buttonYes
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Expansion slots

1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2580
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
4th M.2 highest PCI Express generation4.0
4th M.2 largest key size2280
5th M.2 highest PCI Express generation4.0
5th M.2 largest key size2280
Number of M.2 (M) slots5
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots2

Network

BluetoothYes
Bluetooth version5.4
Ethernet interface type10 Gigabit Ethernet/2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8126/Realtek RTL8127
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller modelMediaTek MT7927

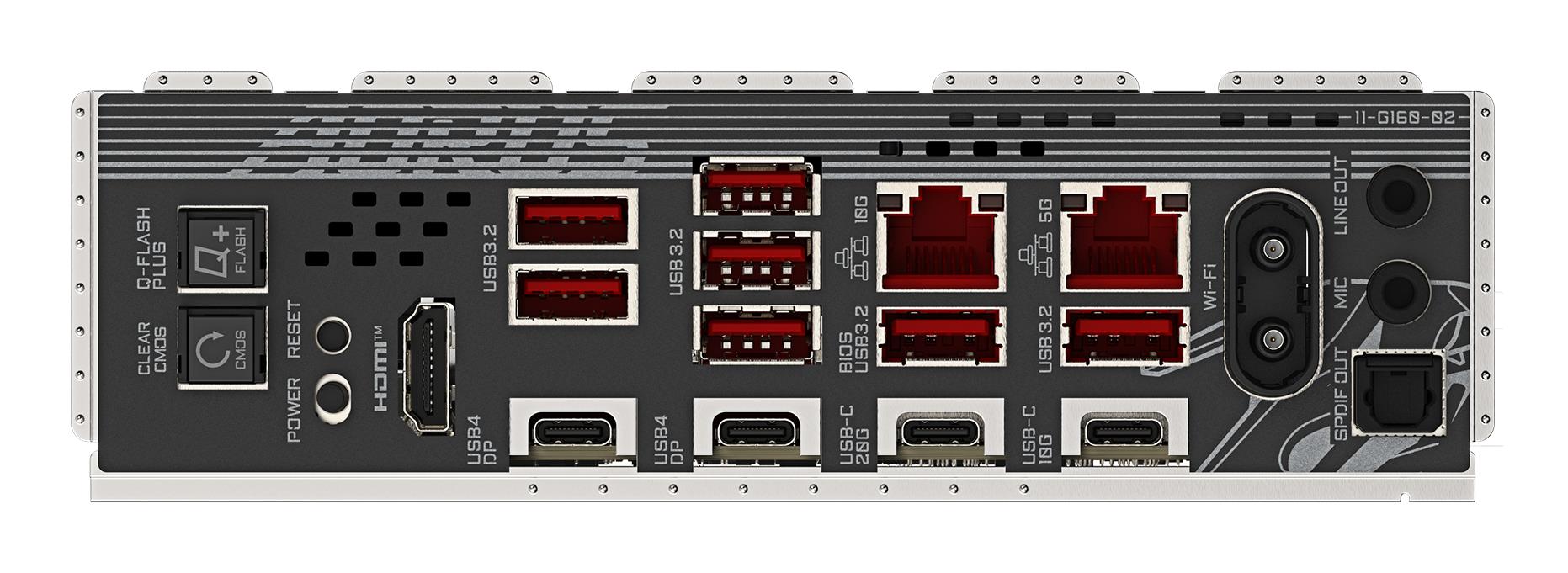

Rear panel I/O ports

Digital audio optical out1
DisplayPort version1.4
Ethernet LAN (RJ-45) ports2
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
S/PDIF out portYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
USB4 Gen 2x2 ports quantity2
WiFi-AP antenna jack2

Internal I/O

ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors6
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)2
Number of noise detection headers1
Number of RGB LED pin headers5
Number of SATA III connectors2
Number of temperature sensor headers2
Number of water pump connectors2
RGB LED pin headerYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 connectors1

Graphics

DirectX version12.0
HDCPYes
HDCP version2.3
Maximum resolution4096 x 2304 pixels
Parallel processing technology supportNot supported

Storage controllers

Number of HDDs supported2
Number of storage drives supported7
RAID levels0/1/10/5
RAID supportYes
Supported storage drive interfacesM.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive typesHDD & SSD

Memory

ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Maximum internal memory per slot64 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)9000 MHz
Supported memory clock speeds4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes

Processor

Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5

Features

Audio chipRealtek ALC1220-VB/ESS 9118
Audio output channels7.1 channels
Component forPC
Cooling typePassive
Motherboard chipsetAMD X870E
Motherboard chipset familyAMD
Motherboard form factorATX
PC health monitoringCPU/Fan/Temperature/Voltage/Water cooling
Power source typeATX
Product colourBlack
Windows operating systems supportedWindows 11 x64

Additional information

EAN

4719331878894
Manufacturer code

X870E A MASTER X
