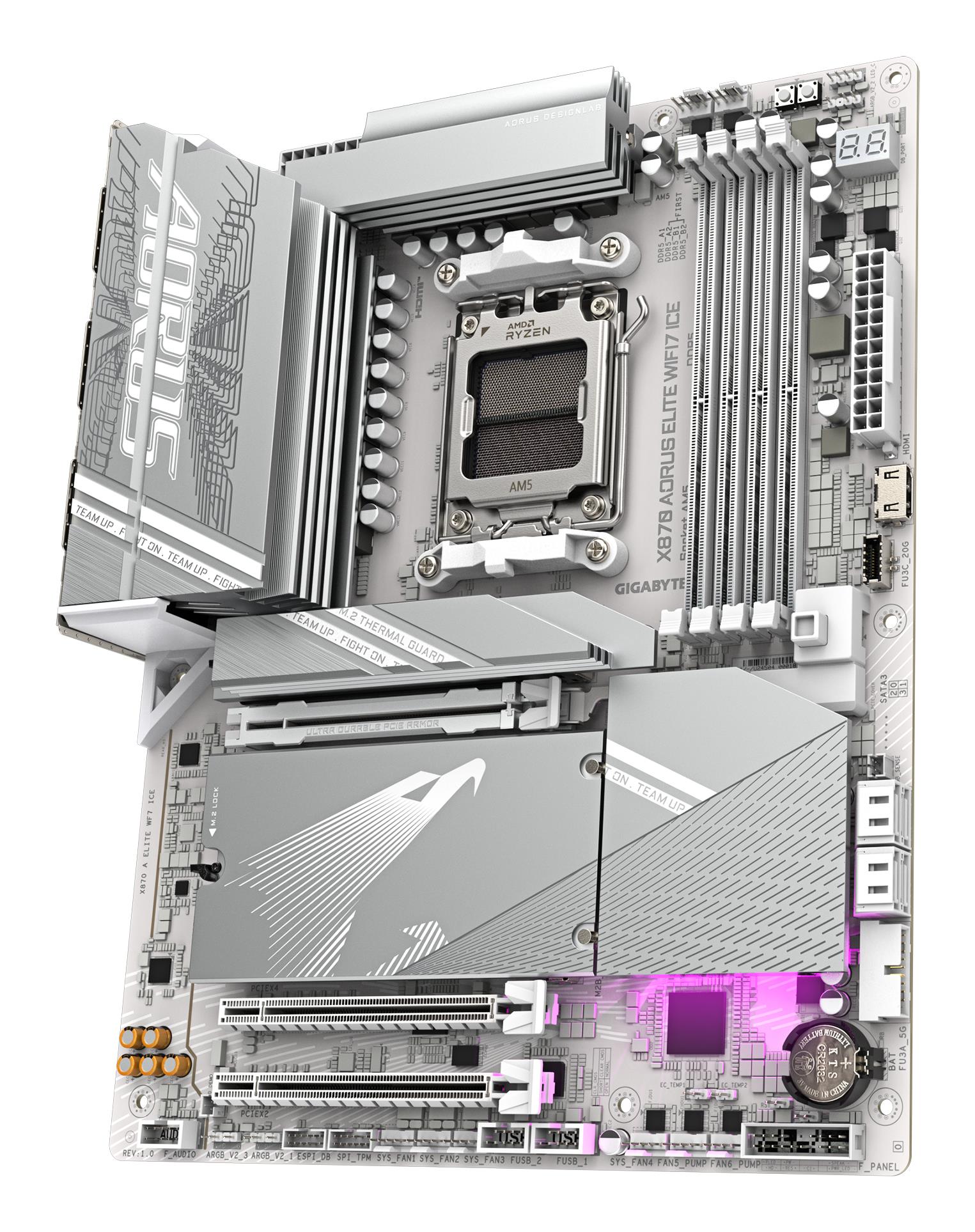

GIGABYTE Amd X870 Socket AM5 ATX X870AELITEWF7ICE1.1 (X870 A ELITE WF7 ICE 1.1)

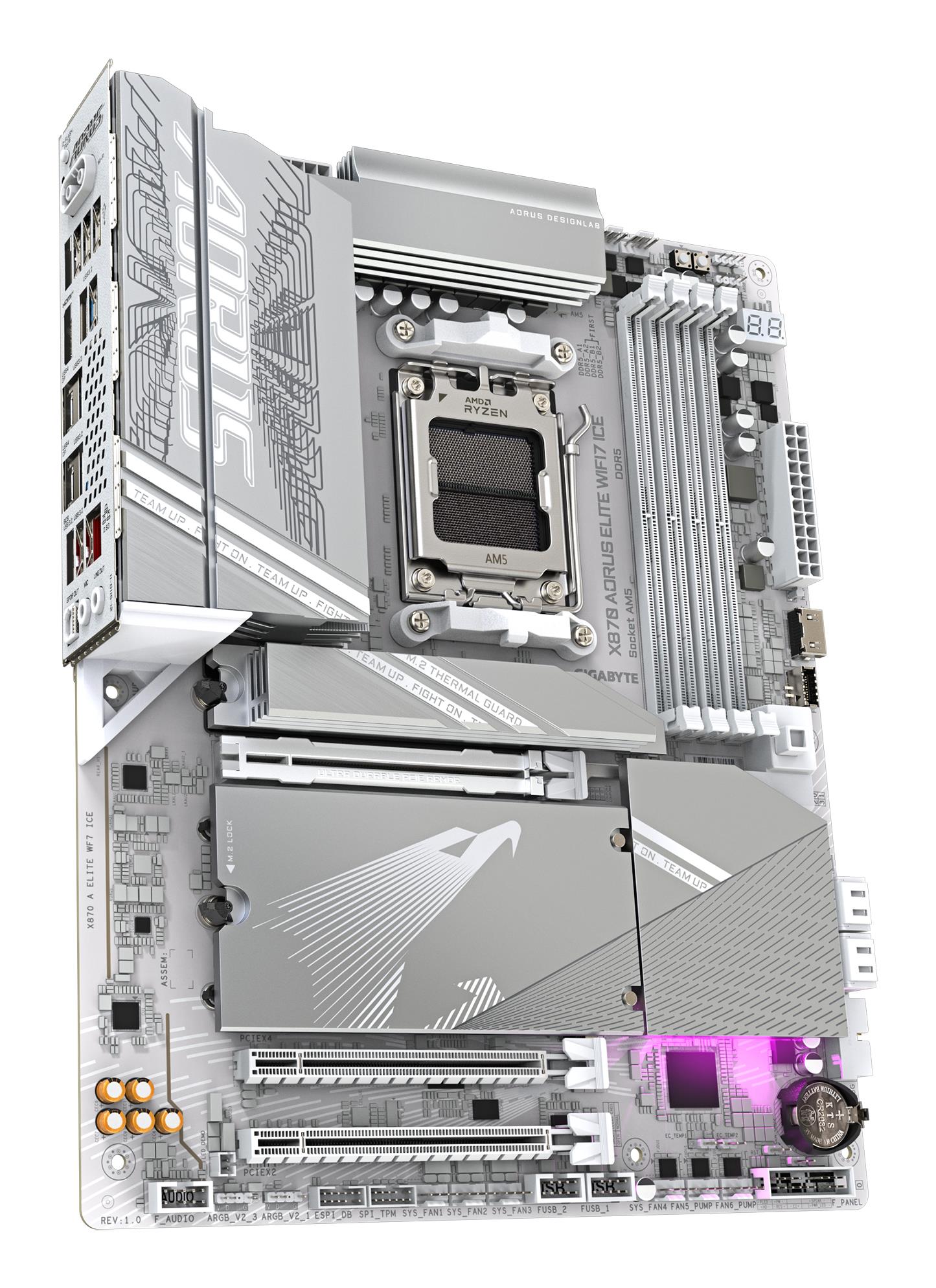

GIGABYTE Amd X870 Socket AM5 ATX X870AELITEWF7ICE1.1 (X870 A ELITE WF7 ICE 1.1) - Image 2
GIGABYTE Amd X870 Socket AM5 ATX X870AELITEWF7ICE1.1 (X870 A ELITE WF7 ICE 1.1) - Image 3

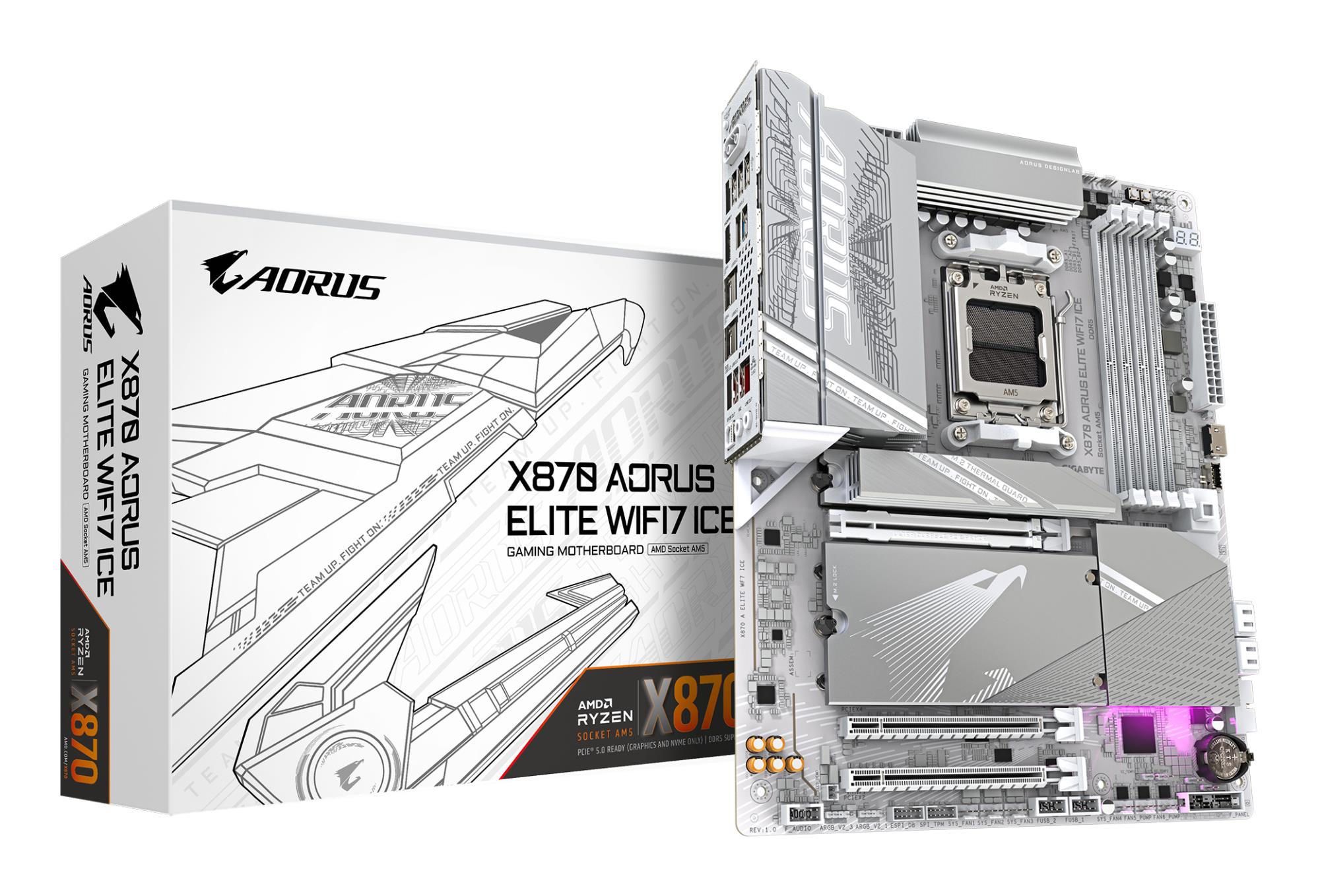

GIGABYTE Amd X870 Socket AM5 ATX X870AELITEWF7ICE1.1 (X870 A ELITE WF7 ICE 1.1) - Image 4

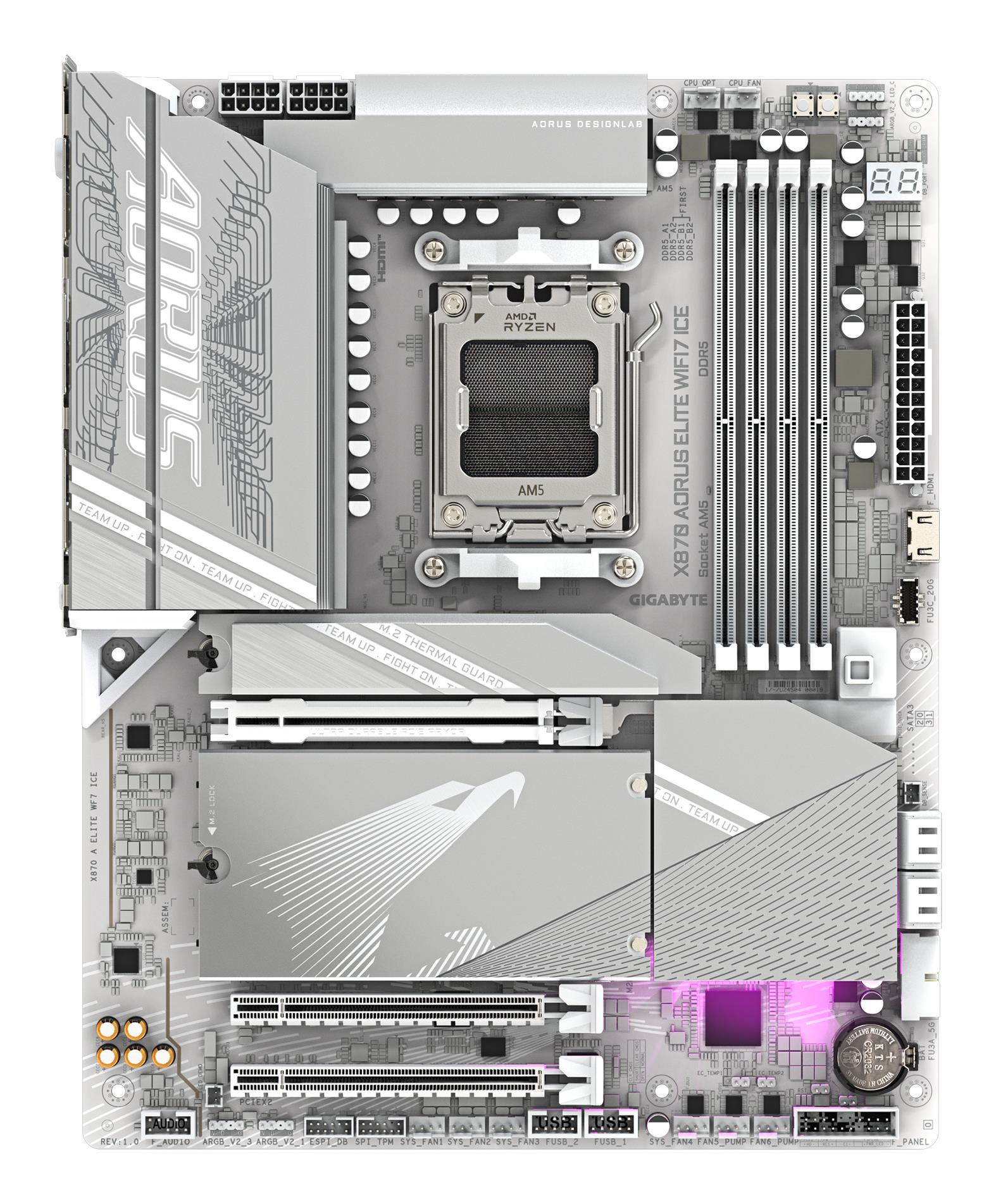

GIGABYTE Amd X870 Socket AM5 ATX X870AELITEWF7ICE1.1 (X870 A ELITE WF7 ICE 1.1) - Image 5

GIGABYTE Amd X870 Socket AM5 ATX X870AELITEWF7ICE1.1 (X870 A ELITE WF7 ICE 1.1)

277,74 €

16 in stock

SKU: 1430582 Category: EAN: 4719331864682 Brand:
Manufacturer code: X870 A ELITE WF7 ICE 1.1

GIGABYTE X870 AORUS ELITE WIFI7 ICE
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Twin 16+2+2 Phases Digital VRM with DrMOS
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Technical details

Warranty period3 year(s)

Other features

Weight2400 g

Packaging content

Antenna includedYes
Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes

Weight & dimensions

Depth244 mm
Height35 mm
Width305 mm

Battery

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1

Logistics data

Country of originChina
Products per shipping (inner) case1 pc(s)

Packaging data

Package depth270 mm
Package height80 mm
Package weight2740 g
Package width335 mm

General

SummaryGIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels, On-board graphics card model: AMD Radeon Graphics. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Vendor Homepagehttps://www.gigabyte.com/Motherboard/X870-AORUS-ELITE-WIFI7-ICE
ModelX870 AORUS ELITE WIFI7 ICE

BIOS

ACPI version5.0
BIOS memory size256 Mbit
BIOS typeUEFI AMI
Clear CMOS buttonYes
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Expansion slots

1st M.2 highest PCI Express generation5.0
1st M.2 largest key size25110
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
3rd M.2 highest PCI Express generation5.0
3rd M.2 largest key size22110
4th M.2 highest PCI Express generation4.0
4th M.2 largest key size22110
Number of M.2 (M) slots4
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1

Network

BluetoothYes
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8125
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller modelMediaTek MT7925

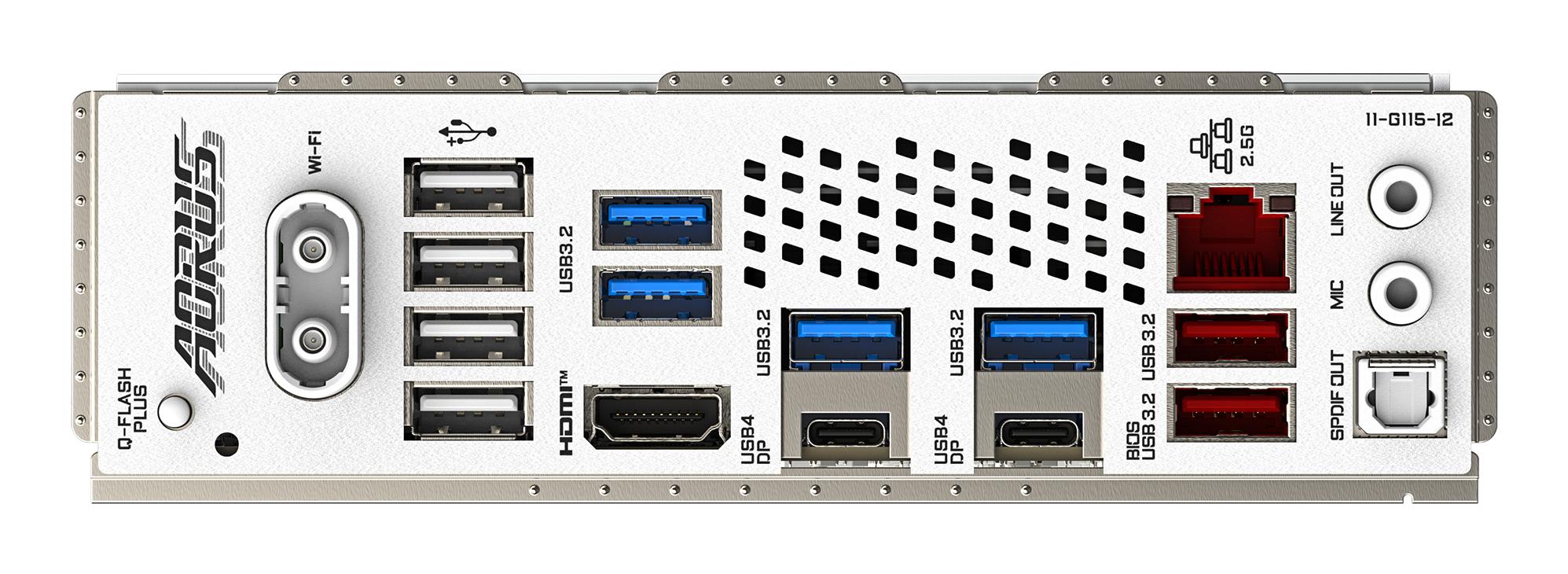

Rear panel I/O ports

DisplayPort version1.4
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB4 Gen 3x2 ports quantity2
WiFi-AP antenna jack2

Internal I/O

12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors6
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)2
Number of RGB LED pin headers4
Number of SATA III connectors4
Number of water pump connectors3
RGB LED pin headerYes
Total number of SATA connectors4
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2x2 connectors1

Graphics

DirectX version12.0
Discrete graphics supportYes
HDCPYes
Maximum resolution4096 x 2160 pixels
Number of displays supported4
On-board graphics cardYes
On-board graphics card modelAMD Radeon Graphics
Parallel processing technology supportNot supported

Storage controllers

Number of HDDs supported4
Number of storage drives supported8
RAID levels0/1/10
RAID supportYes
Supported storage drive interfacesM.2
Supported storage drive typesHDD & SSD

Memory

ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Maximum internal memory per slot64 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)8200 MHz
Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes

Processor

Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Maximum internal memory supported by processor256 GB
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5

Features

Audio chipRealtek ALC1220
Audio output channels7.1 channels
Component forPC
Motherboard chipsetAMD X870
Motherboard chipset familyAMD
Motherboard form factorATX
PC health monitoringFan/Noise/Temperature/Voltage/Water cooling
Product colourWhite
Windows operating systems supportedWindows 11 x64

Additional information

EAN

4719331864682
Manufacturer code

X870 A ELITE WF7 ICE 1.1
