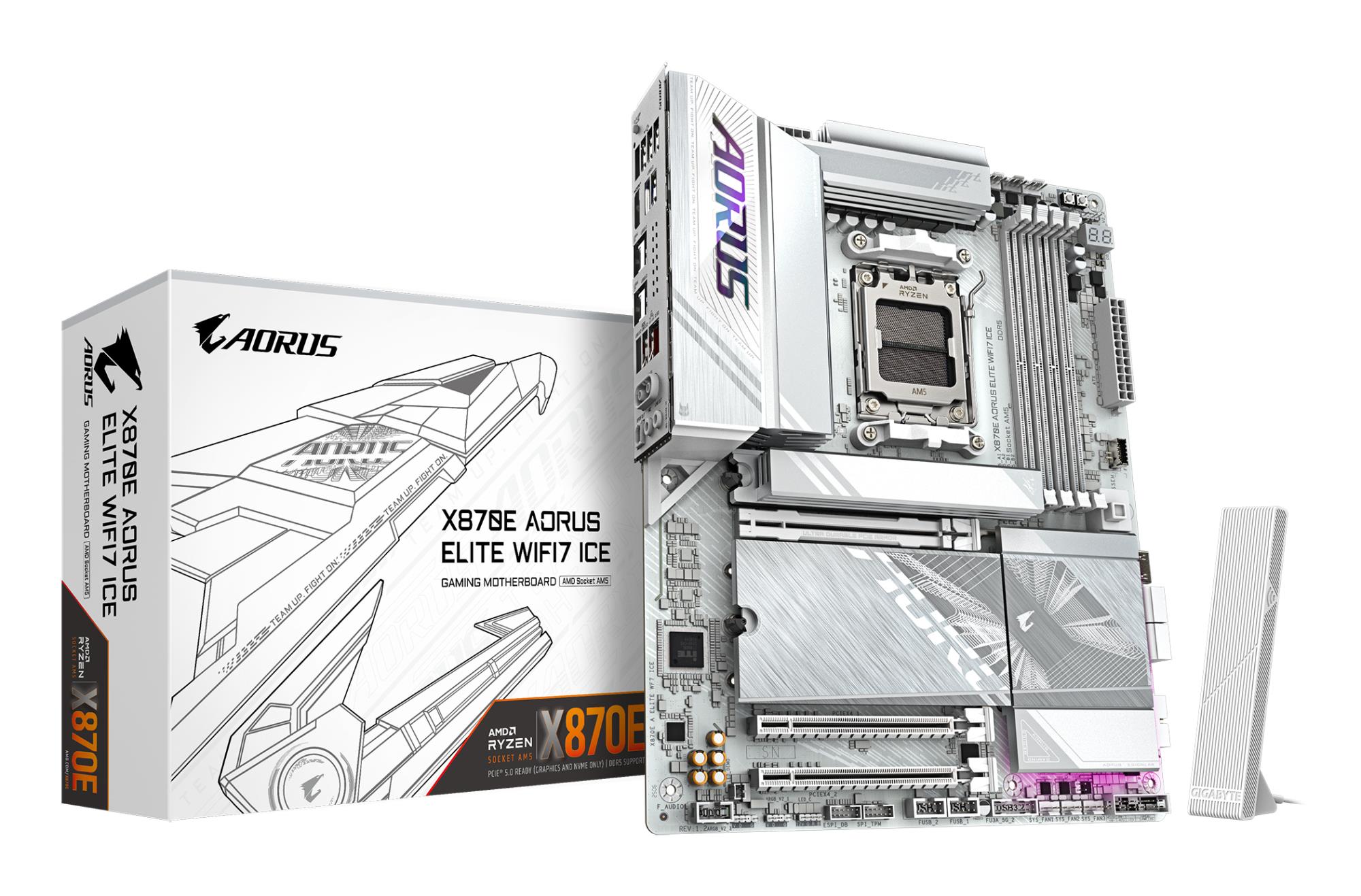

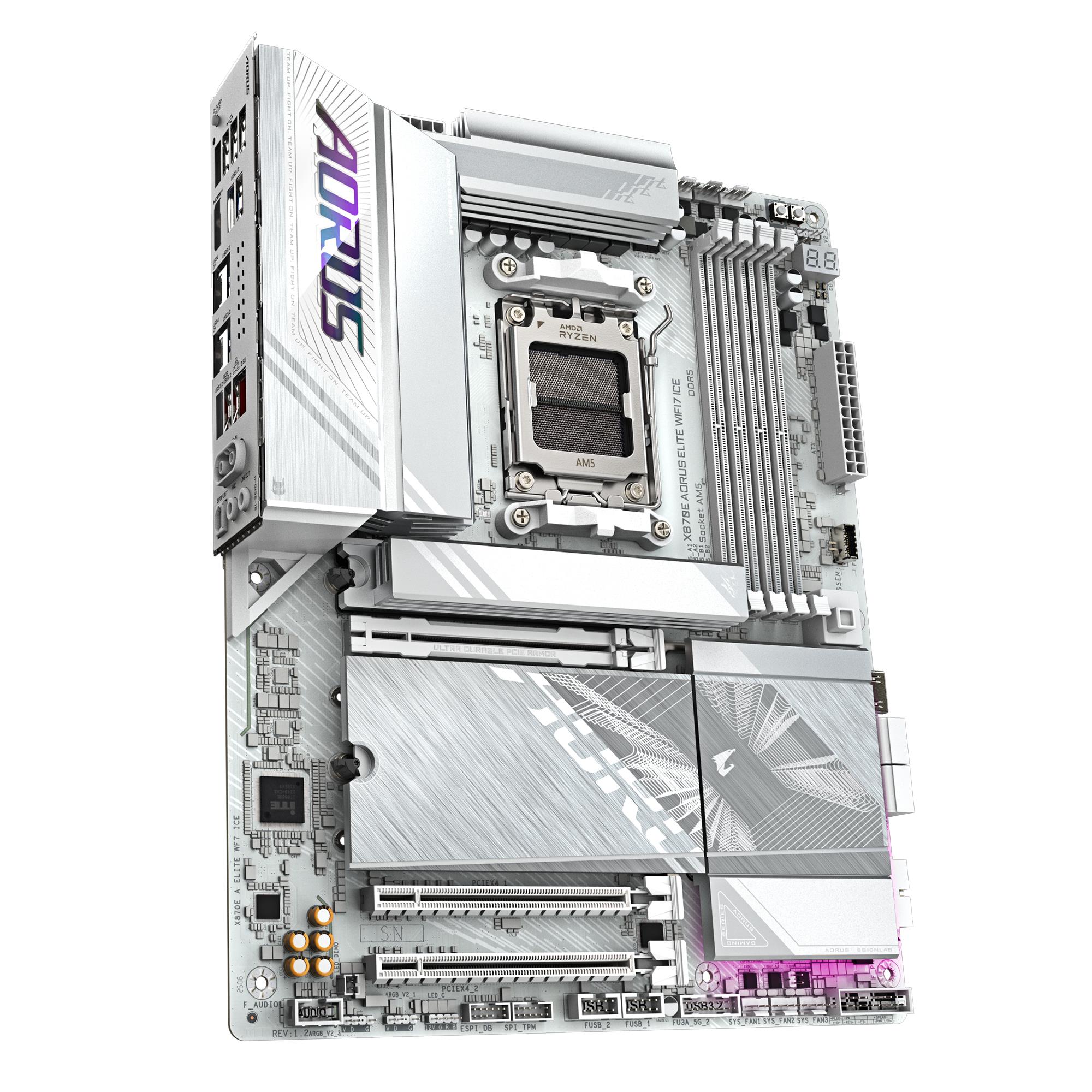

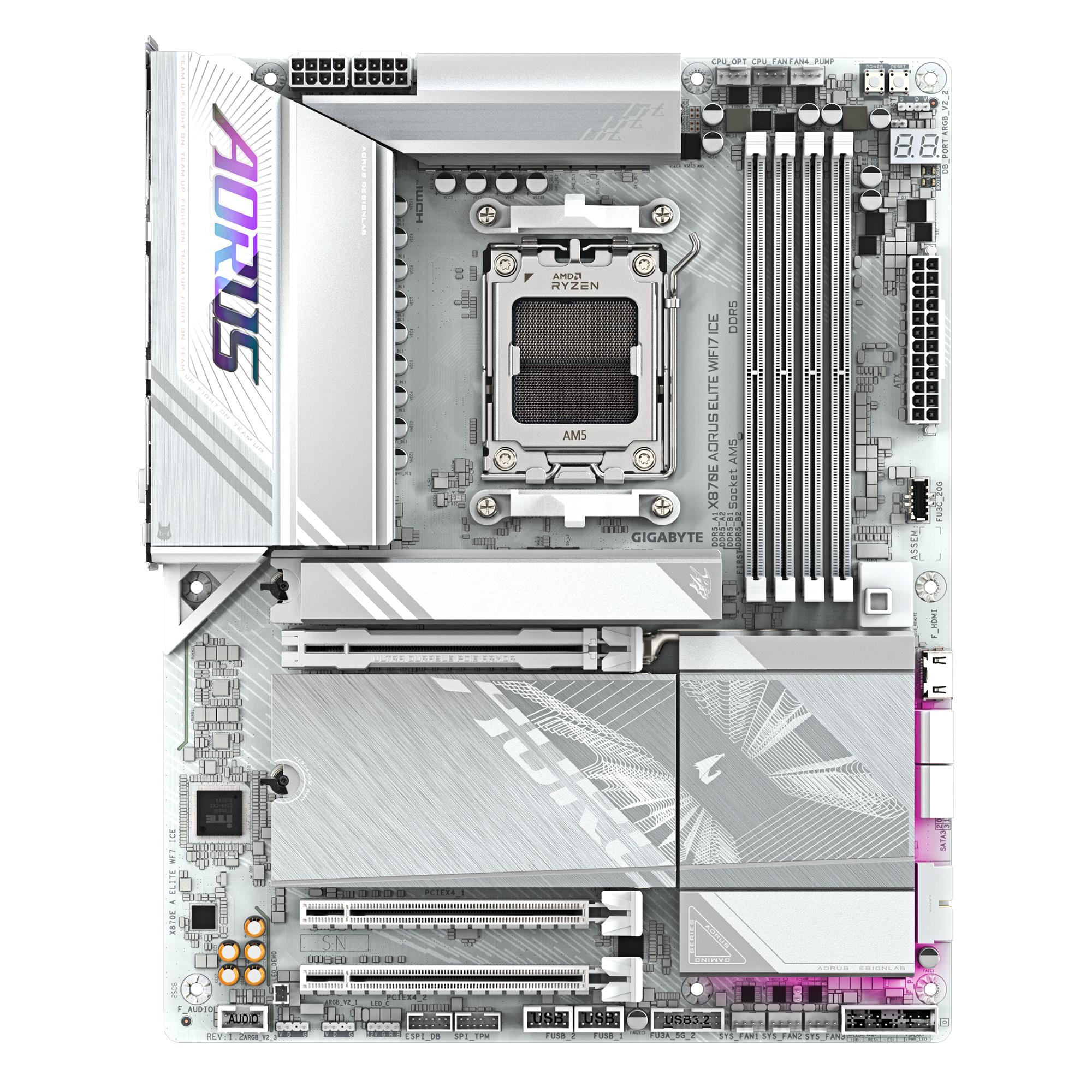

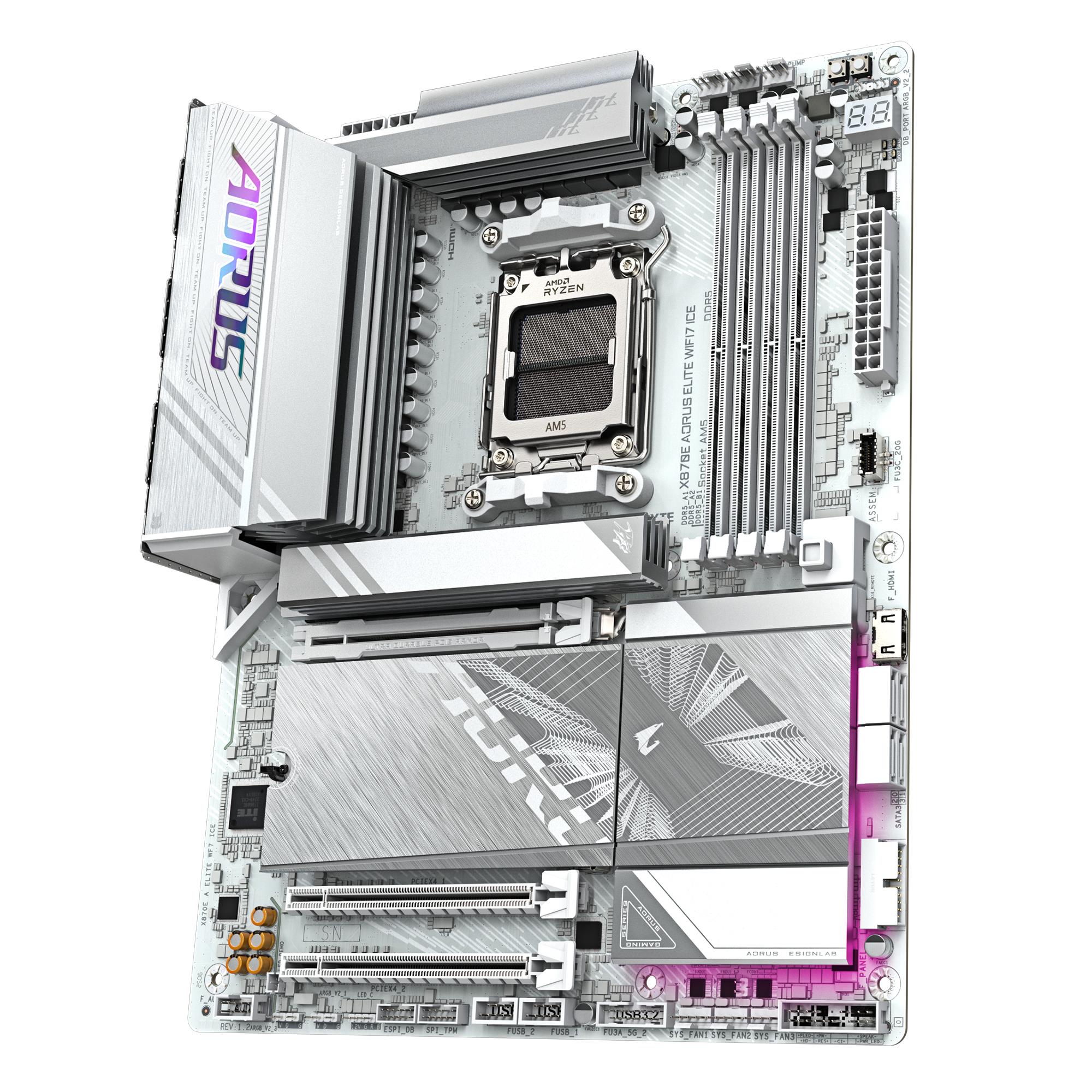

GIGABYTE Amd X870E Socket AM5 ATX X870EAELITEWF7ICE1.2 (X870E A ELITE WF7 ICE 1.2)
GIGABYTE Amd X870E Socket AM5 ATX X870EAELITEWF7ICE1.2 (X870E A ELITE WF7 ICE 1.2) - Image 2
GIGABYTE Amd X870E Socket AM5 ATX X870EAELITEWF7ICE1.2 (X870E A ELITE WF7 ICE 1.2) - Image 3
GIGABYTE Amd X870E Socket AM5 ATX X870EAELITEWF7ICE1.2 (X870E A ELITE WF7 ICE 1.2) - Image 4
GIGABYTE Amd X870E Socket AM5 ATX X870EAELITEWF7ICE1.2 (X870E A ELITE WF7 ICE 1.2) - Image 5

GIGABYTE Amd X870E Socket AM5 ATX X870EAELITEWF7ICE1.2 (X870E A ELITE WF7 ICE 1.2)

299,84 €

5 in stock

SKU: 1439964 Category: EAN: 4719331871529 Brand:
Manufacturer code: X870E A ELITE WF7 ICE 1.2

ELKO Logistics Data

Product Net Weight0.8 kg

Technical details

Warranty period3 year(s)

Other features

Weight2642 g

Packaging content

Antenna includedYes
Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Screws includedYes

Weight & dimensions

Depth244 mm
Height35 mm
Width305 mm

Battery

Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1

Packaging data

Package depth294 mm
Package height80 mm
Package weight2642 g
Package width345 mm

Logistics data

Products per shipping (inner) case1 pc(s)

General

SummaryGIGABYTE X870E AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Vendor Homepagehttps://www.gigabyte.com/ua/Motherboard/X870E-AORUS-ELITE-WIFI7-rev-12
ModelX870 AORUS ELITE WIFI7 ICE

BIOS

ACPI version5.0
BIOS memory size256 Mbit
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Expansion slots

1st M.2 highest PCI Express generation5.0
1st M.2 largest key size25110
2nd M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
3rd M.2 highest PCI Express generation5.0
3rd M.2 largest key size22110
4th M.2 highest PCI Express generation4.0
4th M.2 largest key size22110
Number of M.2 (M) slots4
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1

Network

BluetoothYes
Bluetooth version5.4
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8125
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelRealtek RTL8922AE

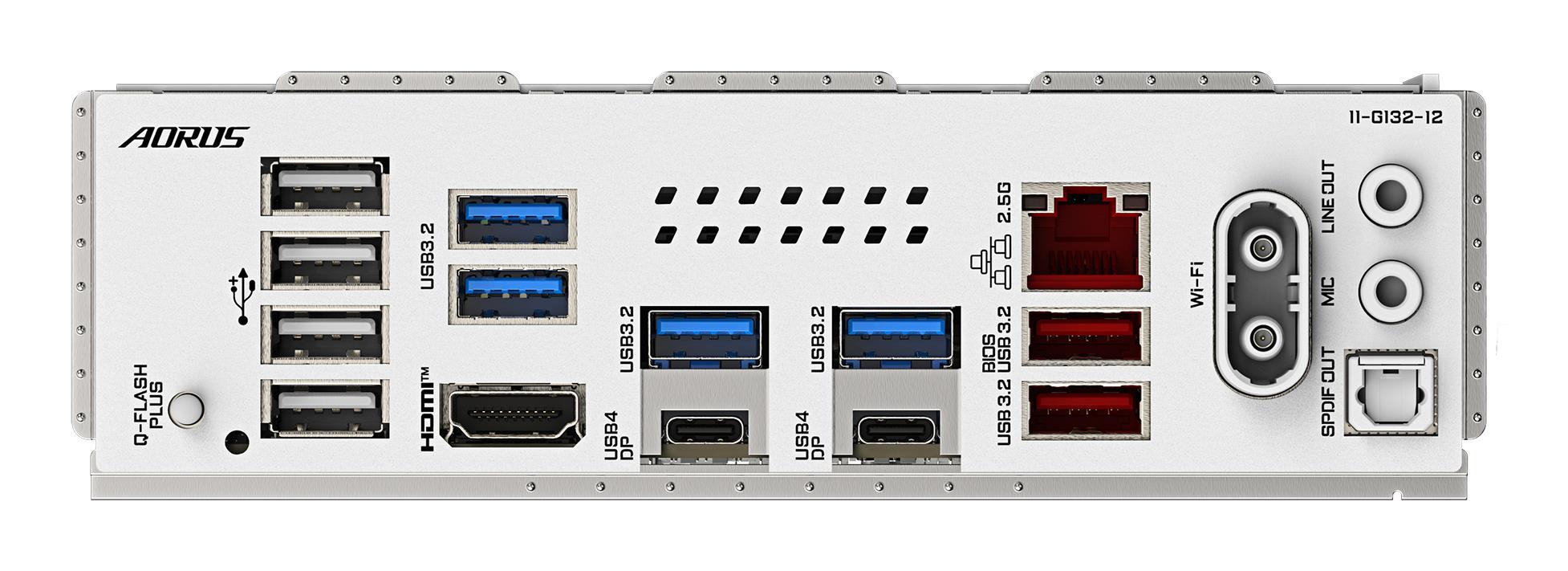

Rear panel I/O ports

Digital audio optical out1
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB4 Gen 2x2 ports quantity2
WiFi-AP antenna jack2

Internal I/O

12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors4
Number of CPU fan connectors2
Number of EPS power connectors (8-pin)2
Number of RGB LED pin headers4
Number of SATA III connectors4
Number of water pump connectors2
RGB LED pin headerYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 connectors1

Graphics

DirectX version12.0
HDCPYes
Maximum resolution4096 x 2160 pixels
On-board graphics cardNo
Parallel processing technology supportNot supported

Storage controllers

Number of HDDs supported4
Number of storage drives supported8
RAID levels0/1/10/5
RAID supportYes
Supported storage drive interfacesM.2,PCI Express 5.0,SATA III
Supported storage drive typesHDD & SSD

Memory

ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Maximum internal memory per slot64 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)8200 MHz
Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes

Processor

Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5

Features

Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
Component forPC
Cooling typePassive
Motherboard chipsetAMD X870E
Motherboard chipset familyAMD
Motherboard form factorATX
PC health monitoringFan/Temperature/Voltage/Water cooling
Power source typeATX
Product colourWhite
Windows operating systems supportedWindows 11 x64

Additional information

EAN

4719331871529
Manufacturer code

X870E A ELITE WF7 ICE 1.2
