ELKO Logistics Data
| Product Net Weight | 16.5 kg |
|---|
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2417291/fiches?language=EN |
|---|---|
| Energy efficiency class | G |
| EPREL Registration Number | 2417291 |
| EPREL Version Number | 2 |
Other features
| Power supply type | Internal |
|---|
Technical details
| Compliance certificates | CB/CE/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC) |
|---|
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | Yes |
Sensors
| Gyroscope | Yes |
|---|---|
| Temperature sensor | Yes |
General

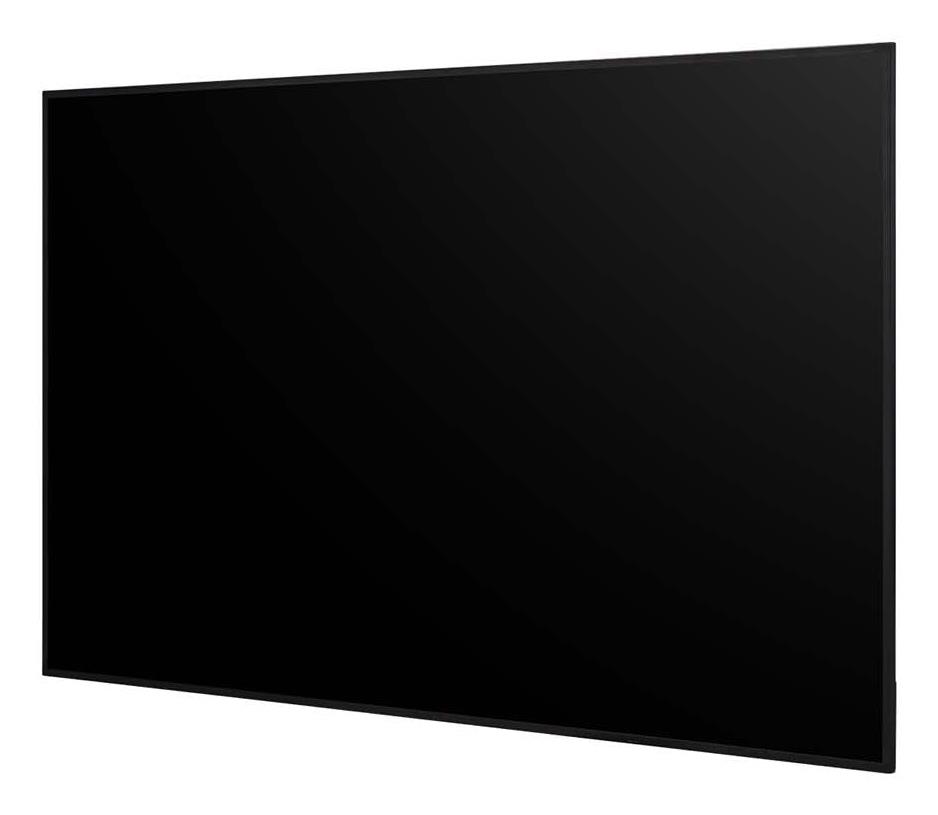

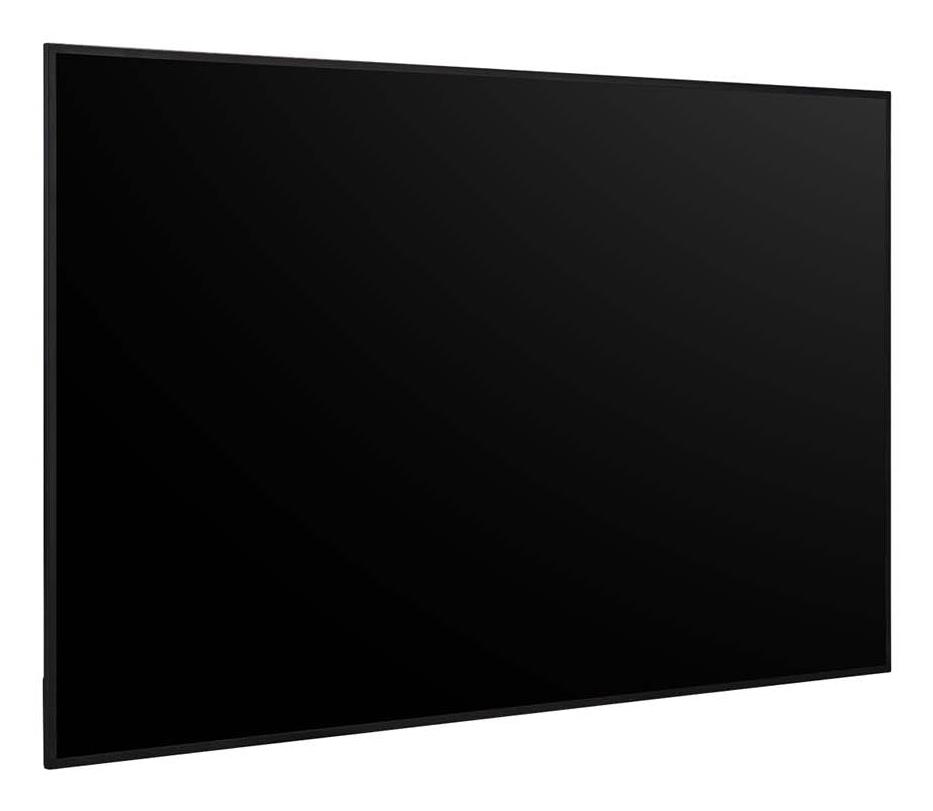

| Summary | LG 65UL5Q-E. Product design: Digital signage flat panel. Display diagonal: 165.1 cm (65"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black |
|---|---|
| Vendor Homepage | https://www.lg.com/global/business/commercial-display/digital-signage/standard/65ul5q-e/ |
| Model name | 65UL5Q-E |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Cables included | Power |
|---|---|
| Remote control included | Yes |
Packaging data
| Package depth | 976 mm |
|---|---|
| Package height | 141 mm |
| Package weight | 21800 g |
| Package width | 1635 mm |
Weight & dimensions
| Display depth | 59.7 mm |
|---|---|
| Display height | 829.2 mm |
| Display weight | 16500 g |
| Display width | 1452.9 mm |
Computer system
| Internal memory | 8 GB |
|---|---|
| Operating system installed | WebOS |
| Operating system version | 6.1 |
Power
| AC input frequency | 50/60 Hz |
|---|---|
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 154 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | G |
| Power consumption (economy mode) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 155 W |
Performance
| On Screen Display (OSD) languages | Arabic/Czech/Danish/Dutch/English/Finnish/French/German/Greek/Italian/Japanese/Korean/Norwegian/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Traditional Chinese/Turkish |
|---|---|
| Operating hours (hours/days) | 24/7 |
| Purpose | Commercial |
| Web browser | Yes |
| webRTC support | Yes |
Design
| Bezel colour | Black |
|---|---|
| Bezel width (bottom) | 10.7 mm |
| Bezel width (side) | 10.7 mm |
| Bezel width (top) | 10.7 mm |
| Orientation | Horizontal/Vertical |

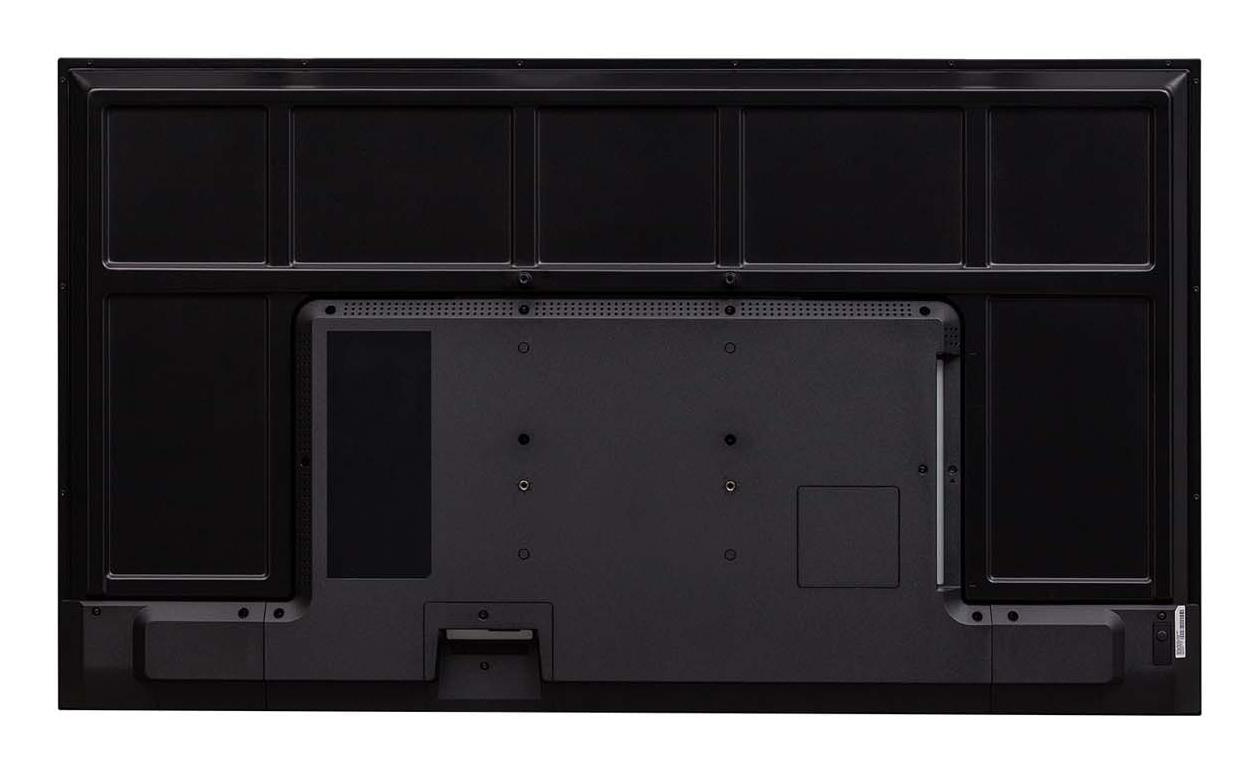

| Panel mounting interface | 200 x 200 mm |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| VESA mounting | Yes |
Audio
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |

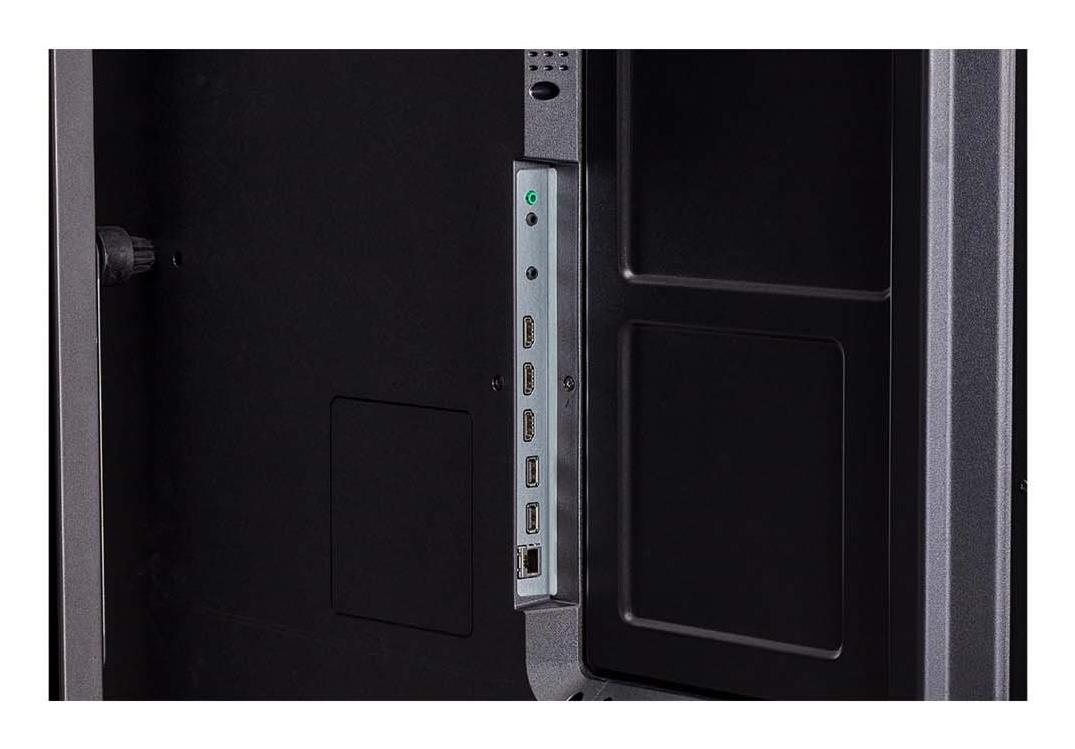

Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.2/1.4 |
| PC Audio out | Yes |
| RS-232C | Yes |
| USB port | Yes |
Display
| Colour saturation | 80 % |
|---|---|
| Contrast ratio (dynamic) | 1000000:1 |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 500 cd/m² |
| Display diagonal | 65 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| Haze rate | 1 % |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Panel type | ADS |
| Rated lifetime | 30000 h |
| Response time | 8 ms |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
