ELKO Logistics Data
| Product Net Weight | 16.1 kg |
|---|
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2459675/fiches?language=EN |
|---|---|
| Energy efficiency class | G |
| EPREL Registration Number | 2459675 |
| EPREL Version Number | 3 |
Other features
| Bezel width | 11.4 mm |
|---|---|
| Power supply type | Internal |
| Safety | CB / NRTL |
Technical details
| Compliance certificates | CE/Federal Communications Commission (FCC)/KC |
|---|---|
| Sustainability certificates | ENERGY STAR/ErP |
Features
| Wall mountable | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
Brand-specific features
| LG technologies (AV/TV) | Smart Energy Saving |
|---|
General

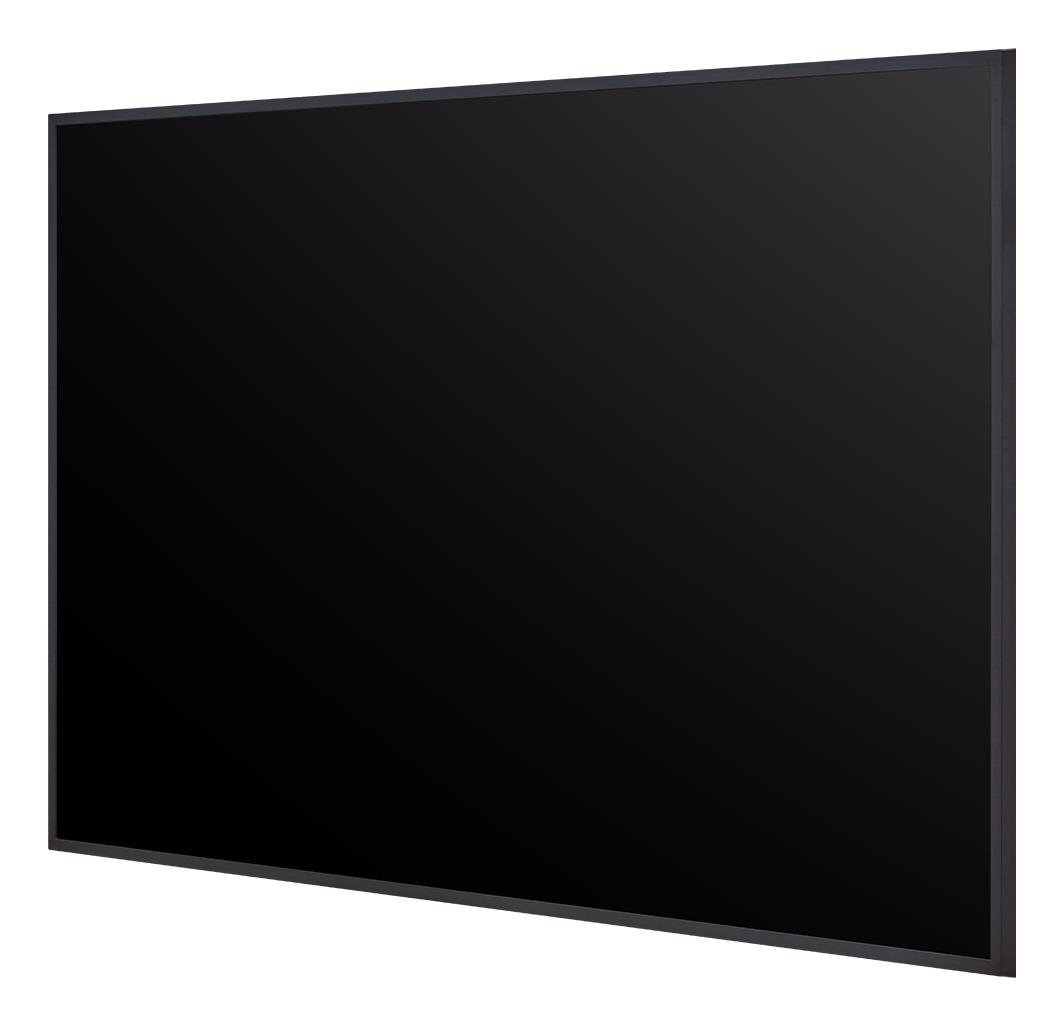

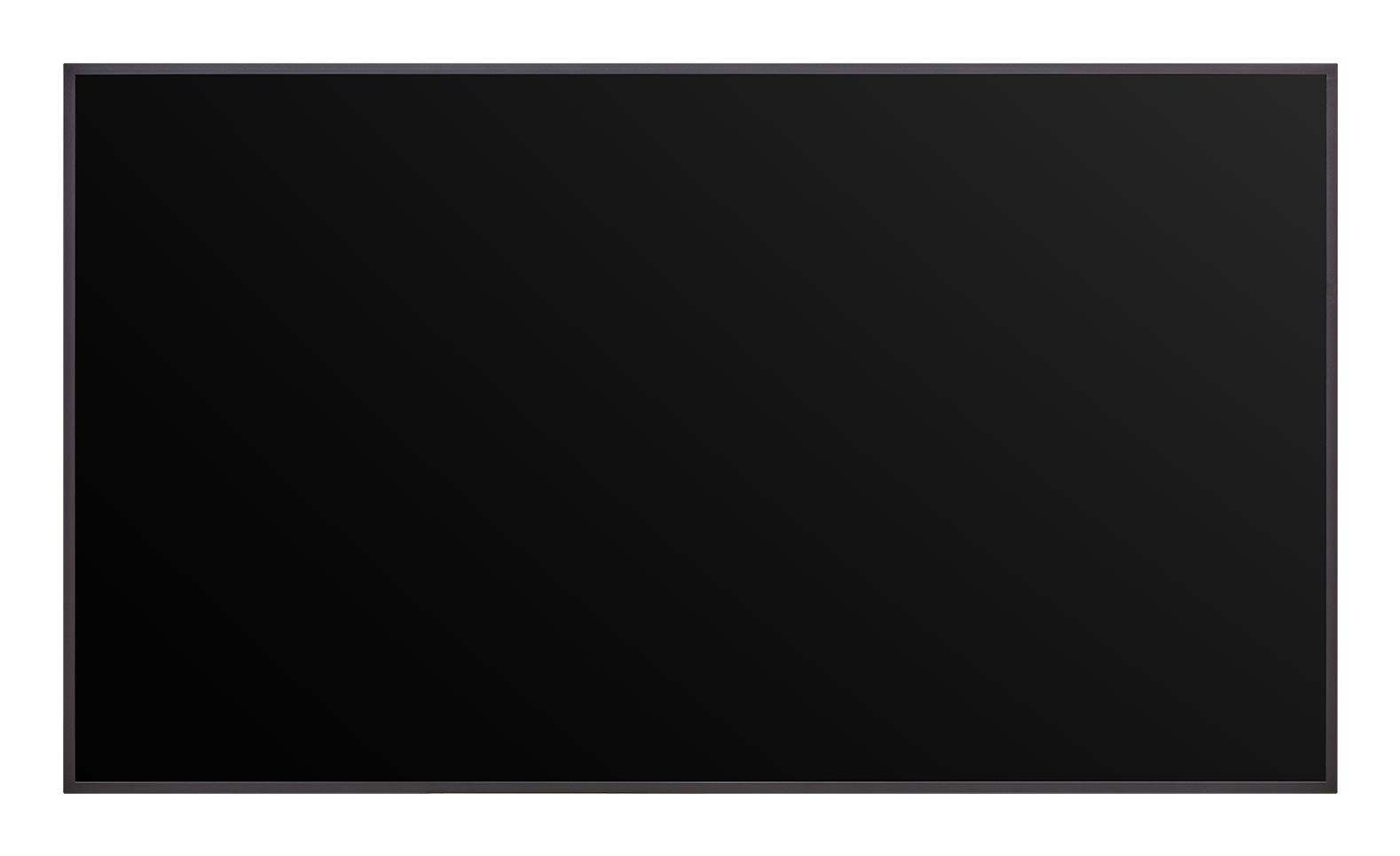

| Summary | LG UH7Q-E. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black |
|---|---|
| Vendor Homepage | https://lg.com/us/ |
| Model name | UH7Q-E |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 % |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Cables included | AC/USB Type-C |
|---|---|
| Remote control included | Yes |
| Tilt angle | 15 ° |
Packaging data
| Package depth | 152 mm |
|---|---|
| Package height | 810 mm |
| Package weight | 20500 g |
| Package width | 1360 mm |
Weight & dimensions
| Display depth | 29.7 mm |
|---|---|
| Display height | 710.8 mm |
| Display width | 1239 mm |
Computer system
| Built-in processor | No |
|---|---|
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Operating system installed | WebOS |
Power
| AC input frequency | 50/60 Hz |
|---|---|
| AC input voltage | 100-240 V |
| Energy consumption (SDR) per 1000 hours | 101 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | G |
| Power consumption (max) | 103 W |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 160 W |
Performance
| International Protection (IP) code | IP5X |
|---|---|
| On Screen Display (OSD) languages | Multi |
| Operating hours (hours/days) | 24/7 |
| Purpose | Universal |
Design
| Bezel colour | Black |
|---|---|
| Panel mounting interface | 300 x 300 mm |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| VESA mounting | Yes |
Audio
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
Ports & interfaces
| Audio (L/R) out | 1 |
|---|---|
| DisplayPorts quantity | 1 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| RS-232C | Yes |
| USB connector type | USB Type-A/USB Type-C |
| USB port | Yes |
| USB ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB version | 2.0 |
Display
| Colour depth | 10 bit |
|---|---|
| Colour gamut | 95 % |
| Contrast ratio (dynamic) | 1000000:1 |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 700 cd/m² |
| Display diagonal | 55 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| Haze rate | 25 % |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Panel type | ADS |
| Rated lifetime | 50000 h |
| Response time | 8 ms |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
